Quick detail
| MODEL NO. | Length(mm) | Width(mm) | Height(mm) | Weight(kg) | | UCFC201 | 90 | 90 | 19 | 0.64 | | UCFC202 | 90 | 90 | 19 | 0.6 | | UCFC203 | 90 | 90 | 19 | 0.58 | | UCFC204 | 100 | 100 | 20.5 | 0.75 | | UCFC205 | 115 | 115 | 21 | 1 | | UCFC206 | 125 | 125 | 23 | 1.3 | | UCFC207 | 135 | 135 | 26 | 1.75 | | UCFC208 | 145 | 145 | 26 | 2 | | UCFC209 | 160 | 160 | 26 | 2.5 | | UCFC210 | 165 | 165 | 28 | 2.95 | | UCFC211 | 185 | 185 | 30 | 4 | | UCFC212 | 195 | 195 | 35 | 4.9 | | UCFC213 | 205 | 205 | 36 | 5.35 | | UCFC214 | 215 | 215 | 38 | 6.9 | | UCFC215 | 220 | 220 | 39 | 7.5 | | UCFC216 | 240 | 240 | 42 | 8.7 | | UCFC217 | 250 | 250 | 45 | 10.3 | | UCFC218 | 265 | 265 | 50 | 13.5 | |
Pillow Block Bearing UCFC series
Pillow block bearing is a kind of bearing that looks like a small ball bearing that has a casting pedestal or a pressed steel plate and a double seal. If you will look closely inside it, you will see that the pillow block bearings is very much the same as the other kinds of bearing like the deep groove ball bearings. The only difference is that is you will look closely at the outer ring of the pillow block bearings, you can see that it has section balls which is best use with the concave part of the bearing pedestal.
Pillow blocks are usually mounted in cleaner environments & generally are meant for lesser loads of general industry. These differ from "plummer blocks" which are bearing housings supplied without any bearings & are usually meant for higher load ratings & corrosive industrial environments. However the terms pillow-block & plummer-block are used interchangeably in certain parts of the world.
We supply a full range of pillow block UCP, UCF, UCFL, UCT, UCPH, UCPA, UCFA, UCFC series.

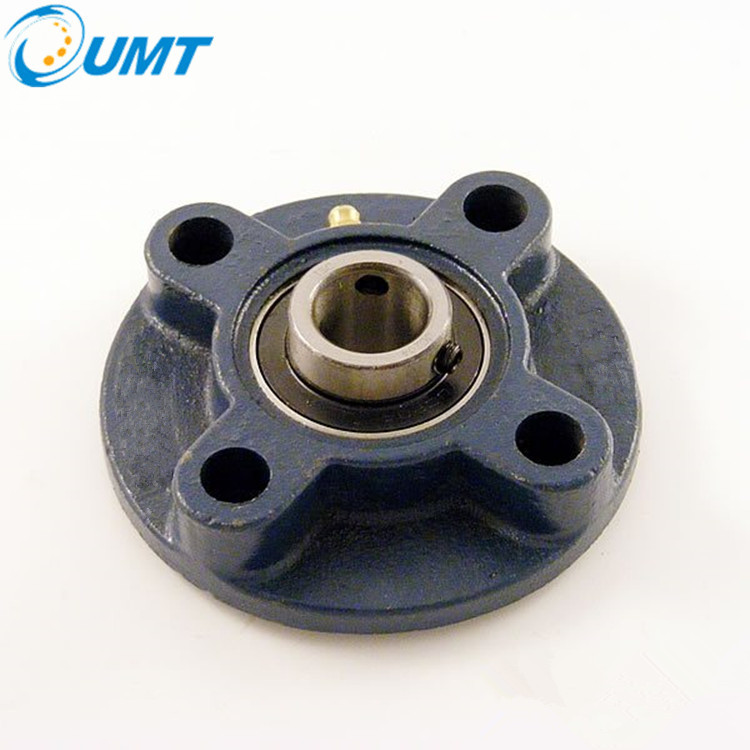

Product Picture
Product Features
- Low Friction Coefficient
- Reduce Damage To The Shaft
- Good Cushioning Effect
- Release The Torque
Product Advantage
- High Rotation Speed
- Low Noise
- High Precision
- Long Service Life
Product Application
Automobiles, Machine Tools, Motors, Instruments,Construction Machines, Textile Machines, Railway Vehicles,
Agricultures Machines and various other areas.
